50W Signum Projector With 56MM Optic

LED projector, up to 6 metres projection distance

Signum 50W Projector With Optical 56MM For Safety Signage

50W Signum Projector With 56MM Optic

LED Projector

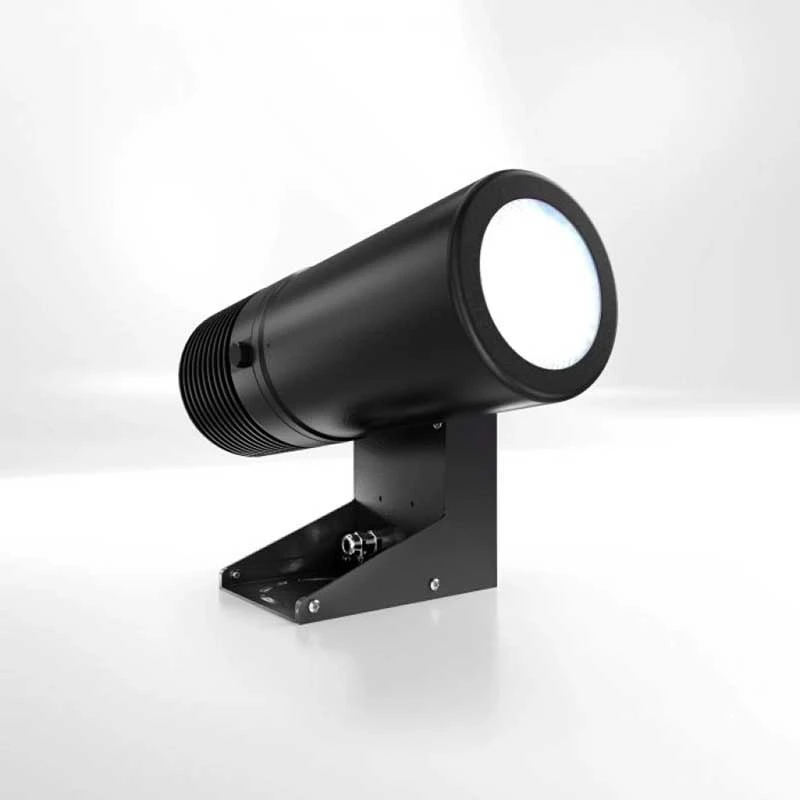

This 50W Signum projector with 56mm optic is an advanced solution for health & safety signage, designed for clear and vivid image projection such as signs and logos. It is equipped with a wide-angle lens, makes it suitable for clear and effective image projection over a distance of up to 6 metres.

Read more...
High efficiency
High efficiency
Brightness
Brightness
Low consumption
Low consumption
Request a quote
Signum 50W signage projection
Projected stop safety sign
Stop sign projection

Product Description

This 50W Signum projector with 56mm optic is an advanced solution for health & safety signage, designed for clear and vivid image projection such as signs and logos. It is equipped with a wide-angle lens, makes it suitable for clear and effective image projection over a distance of up to 6 metres. It uses advanced LED technology to deliver bright and sharp images and 50W power ensures sufficient brightness for visibility in various lighting conditions. Its functional and innovative design makes it ideal to project images, logos, signals and photos with high quality.

This projector is perfect for safety signage in industrial areas, factories and construction sites. Suitable for projecting pedestrian crossing signs in warehouses and for any organization looking to improve their safety measures. It can also be used for projecting company logos, directional signs and other important signals in public spaces.

Features

Type of projection

Signals and Pedestrian Crossings

Projection distance in metres

From 0 to 6 meters

Tech specs

Material Aluminium
Size 40.8 × 19.1 × 11.5cm
Protection rating (IP) IP65
Protection rating (IK) IK09
Surface finishing Black painting RAL 9005
Optical system 56mm
Power mode 110-240V 50/60Hz
Light source CITILED COB
Colour temperature 6000K
  • Controllable with Casambi system via Android and IOS app (power on/off – network creation – batch or individual control)
  • WIRELESS proximity sensor activation (network creation up to 32 units – operation under WIFI network or in the Cloud)
  • Compatible with DALI and DMX networking
Download datasheet

Applications

  • Manufacturing Plants: Highlight hazardous areas, machinery operation zones, and safety instructions.
  • Warehouses: Indicate forklift pathways, storage areas, pedestrian crossings in busy areas or poorly lit areas and emergency exits.
  • Construction Sites: Project safety warnings, PPE requirements and restricted zones.
  • Hospitals and Laboratories: Mark biohazard areas, cleanliness instructions and emergency equipment locations.
  • Corporate Logos: Display company logos at events, entrances or promotional activities.

Benefits

  • Enhanced Safety: Clearly visible safety messages reduce the risk of accidents and improve compliance with safety protocols.
  • Versatility: Suitable for a wide range of environments, from factories to healthcare facilities.
  • Cost-Effective: Reduces the need for physical signs, lowering maintenance and replacement costs.
  • Environmental Impact: Energy-efficient operation and long-lasting LED light source contribute to a lower carbon footprint.

This 50W Signum projector is an essential tool to enhance safety and visibility in various areas. It is capable of projecting images clearly up to 6 meters away, makes it ideal for medium to large spaces.

FAQ

You can request a quote by sending an email to sales@fantasylights.com or call us at 01 4601052. You can also contact us via contact form available on our website.

No, the use is very simple: just follow the instructions given in the instruction manual.

The projectors have a 2-year warranty.

You can contact us by e-mail at sales@fantasylights.com or by phone at +353 1 4601052.

In order to carry out the study of a projection project, it will be necessary to provide us with the following information:

  • The distance between the projector attachment point and the projection surface.
  • A photo of the projection surface.
  • The size of the area to be covered by the projection.
  • The ambient light level.
  • The graphics, if any, to be projected.

If necessary, it is possible, as an additional service, to include the creation of the projection graphics in the offer.

You will find mounting directions in your projector’s instruction manual. We always ship a manual containing mounting instructions with our gobos. To avoid damaging the gobo during use please follow the instructions below:

  • Mount the black and white gobos with the grey side facing the lens.
  • Mount the colour gobos with the black side facing the lens.
